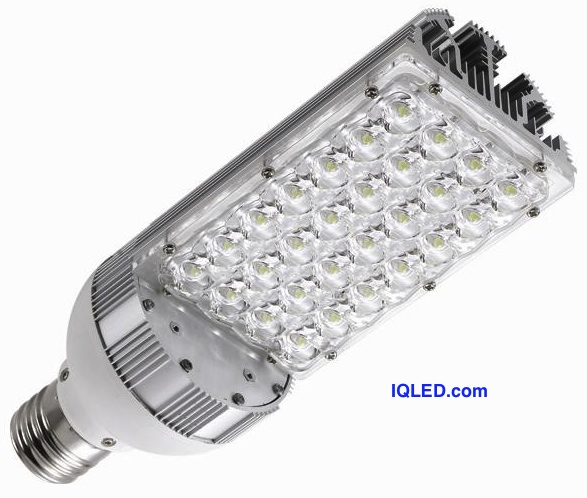

E40 MIL Military Grade 30W LED Street Light
E40 MIL Military Grade 30W LED Street Light.
2,500lm (equal to 150w HPS lamp on 20 feet/6m Height Pole or 75w HPS Lamp on 23 feet/7m height pole)
Frequency Range 47 ~ 63 Hz
Power Factor(PF） >0.92
Total Harmonic Distortion（THD） <20%
Power Efficiency 85%
Working Voltage 85-264VAC, 12 or 24VAC/DC
LED Consumption 28 W
LED Luminous Efficiency >95 lm/w
LED Initial Flux 2,500 lm ( Tj=25℃ )
LED Maintain Flux 2,300 lm ( Tj=70℃,Ta=25℃)
Lamp Output Flux 2,100 lm ( Tj=70℃,Ta=25℃)
Lamp Efficiency >0.9
Illumination(E) (Height=6 m )>15 lux（Equal to HPS 33 lux）
(Height=8 m ) >9.5 lux（Equal to HPS 19 lux）
(Height=10 m )>6.5 lux（Equal to HPS 11 lux）
(Height=12 m )>5 lux（Equal to HPS 7.5 lux）
Effective Illuminated Area 20×8 m (Height=6 m ) 26×10 m (Height=8 m )
Color Temperature Pure White, White White, Cool White
Color Index(CRI) Ra>78
Light Source High Power 1 Watt LED
Light Distribution Curve / Beam Pattern Asymmetric (Bat Wing) / Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, The Vertical Axis:45°
Beam Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature ( Tj ) 70 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance ( Rja ) 1.4 ° C / W
Working Temperature - 30 ° C ~ 40 ° C
Working Humidity 10 % ~ 90 % RH
Storage Temperature 10 ° C ~ 85 ° C
Working Life > 50,000 Hrs
Light Body & Lampshade Material Aluminum Alloy and PC
Lamp Base E40
The Dimensions(Units : mm) ￠90x275 mm
Net Weight (g) 1 kg
IP Rating IP 60
Packing 1 pc/White Box, 4 pcs/Carton
inner Packing size 110x110x29.5mm
Carton Size 320 x 320 mm x 350mm
Container Q’ty (pcs) 20’Q: 3,570 pcs 40’Q: 7,350 pcs, 40’HQ: 8,400 pcs
Installation: Remove the existing light source. Connect the 220VAC or 110VAC input terminal direct with the lamp holders. Do not use the original rectifier; otherwise, the high voltage will burn the LED. "remove Capacitors, Ballast , Transformers)
2,500lm (equal to 150w HPS lamp on 20 feet/6m Height Pole or 75w HPS Lamp on 23 feet/7m height pole)
Frequency Range 47 ~ 63 Hz
Power Factor(PF） >0.92
Total Harmonic Distortion（THD） <20%
Power Efficiency 85%
Working Voltage 85-264VAC, 12 or 24VAC/DC
LED Consumption 28 W
LED Luminous Efficiency >95 lm/w
LED Initial Flux 2,500 lm ( Tj=25℃ )
LED Maintain Flux 2,300 lm ( Tj=70℃,Ta=25℃)
Lamp Output Flux 2,100 lm ( Tj=70℃,Ta=25℃)
Lamp Efficiency >0.9
Illumination(E) (Height=6 m )>15 lux（Equal to HPS 33 lux）
(Height=8 m ) >9.5 lux（Equal to HPS 19 lux）
(Height=10 m )>6.5 lux（Equal to HPS 11 lux）
(Height=12 m )>5 lux（Equal to HPS 7.5 lux）
Effective Illuminated Area 20×8 m (Height=6 m ) 26×10 m (Height=8 m )
Color Temperature Pure White, White White, Cool White
Color Index(CRI) Ra>78
Light Source High Power 1 Watt LED
Light Distribution Curve / Beam Pattern Asymmetric (Bat Wing) / Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, The Vertical Axis:45°
Beam Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature ( Tj ) 70 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance ( Rja ) 1.4 ° C / W
Working Temperature - 30 ° C ~ 40 ° C
Working Humidity 10 % ~ 90 % RH
Storage Temperature 10 ° C ~ 85 ° C
Working Life > 50,000 Hrs
Light Body & Lampshade Material Aluminum Alloy and PC
Lamp Base E40
The Dimensions(Units : mm) ￠90x275 mm
Net Weight (g) 1 kg
IP Rating IP 60
Packing 1 pc/White Box, 4 pcs/Carton
inner Packing size 110x110x29.5mm
Carton Size 320 x 320 mm x 350mm
Container Q’ty (pcs) 20’Q: 3,570 pcs 40’Q: 7,350 pcs, 40’HQ: 8,400 pcs
Installation: Remove the existing light source. Connect the 220VAC or 110VAC input terminal direct with the lamp holders. Do not use the original rectifier; otherwise, the high voltage will burn the LED. "remove Capacitors, Ballast , Transformers)
