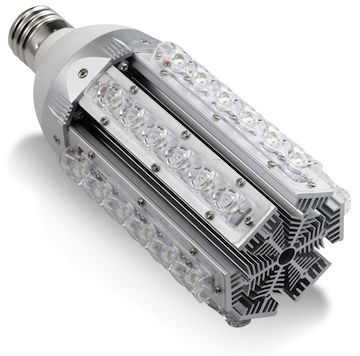

E40 36W LED Street Bulb 360 Degree Beam Angle MIL
E40 36W LED street bulb 360 degree beam angle, Military Grade Retrofit E40.
Input Voltage 85-285VAC; 12 or 24VAC/DC
Frequency Range 47 ~ 63 Hz
Power Factor(PF) >0.92
Total Harmonic Distortion(THD) <20%
Power Efficiency 85%
Working Voltage 85-264VAC
LED Consumption 36 W
LED Luminous Efficiency >95 lm/w
LED Initial Flux 3,250 lm ( Tj=25? )
LED Maintain Flux 2,950 lm ( Tj=70?,Ta=25?)
Lamp Output Flux 2,680 lm ( Tj=70?,Ta=25?)
Lamp Efficiency 0.9
Illumination(E) (Height=6 m )>28 lux(Equal to HPS 68 lux)
(Height=8 m ) >19 lux(Equal to HPS 45 lux)
(Height=10 m )>12 lux(Equal to HPS 30 lux)
(Height=12 m )>8 lux(Equal to HPS 19 lux)
Effective Illuminated Area
20×8 m (Height=6 m )
26×10 m (Height=8 m )
Color Temperature Pure White, White White, Cool White
Color Index(CRI) Ra>78
Light Source High Power 1 Watt LED
Light Distribution Curve / Beam Pattern Asymmetric (Bat Wing) / Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130°, The Vertical Axis:45°
Beam Angle 360°
Junction Temperature ( Tj ) 70 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance ( Rja ) 1.4 ° C / W
Working Temperature - 30 ° C ~ 40 ° C
Working Humidity 10 % ~ 90 % RH
Storage Temperature 10 ° C ~ 85 ° C
Working Life > 50,000 Hrs
Light Body & Lampshade Material Aluminum Alloy and PC
Lamp Base E40
The Dimensions(Units : mm) ?105x275mm
Net Weight (g) 1.5 kg
IP Rating IP 6
Packing 1 pc/White Box, 4 pcs/Carton
inner Packing size 145x145x310mm
Carton Size 350 x 350 mm x 380mm
Installation: Remove the existing light source. Connect the 220VAC or 110VAC input terminal direct with the lamp holders. Do not use the original rectifier; otherwise, the high voltage will burn the LED. "remove Capacitors, Ballast , Transformers)
Input Voltage 85-285VAC; 12 or 24VAC/DC
Frequency Range 47 ~ 63 Hz
Power Factor(PF) >0.92
Total Harmonic Distortion(THD) <20%
Power Efficiency 85%
Working Voltage 85-264VAC
LED Consumption 36 W
LED Luminous Efficiency >95 lm/w
LED Initial Flux 3,250 lm ( Tj=25? )
LED Maintain Flux 2,950 lm ( Tj=70?,Ta=25?)
Lamp Output Flux 2,680 lm ( Tj=70?,Ta=25?)
Lamp Efficiency 0.9
Illumination(E) (Height=6 m )>28 lux(Equal to HPS 68 lux)
(Height=8 m ) >19 lux(Equal to HPS 45 lux)
(Height=10 m )>12 lux(Equal to HPS 30 lux)
(Height=12 m )>8 lux(Equal to HPS 19 lux)
Effective Illuminated Area
20×8 m (Height=6 m )
26×10 m (Height=8 m )
Color Temperature Pure White, White White, Cool White
Color Index(CRI) Ra>78
Light Source High Power 1 Watt LED
Light Distribution Curve / Beam Pattern Asymmetric (Bat Wing) / Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130°, The Vertical Axis:45°
Beam Angle 360°
Junction Temperature ( Tj ) 70 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance ( Rja ) 1.4 ° C / W
Working Temperature - 30 ° C ~ 40 ° C
Working Humidity 10 % ~ 90 % RH
Storage Temperature 10 ° C ~ 85 ° C
Working Life > 50,000 Hrs
Light Body & Lampshade Material Aluminum Alloy and PC
Lamp Base E40
The Dimensions(Units : mm) ?105x275mm
Net Weight (g) 1.5 kg
IP Rating IP 6
Packing 1 pc/White Box, 4 pcs/Carton
inner Packing size 145x145x310mm
Carton Size 350 x 350 mm x 380mm
Installation: Remove the existing light source. Connect the 220VAC or 110VAC input terminal direct with the lamp holders. Do not use the original rectifier; otherwise, the high voltage will burn the LED. "remove Capacitors, Ballast , Transformers)
