How to use Solar LED Street Lights to illuminate Streets
IQ Solar LED Street Lighting If you can dream it, We can
illuminate.
Item# 160400 IQLED solar led illumination 2500 Lumens NEW
2011 IQLED!
Your next scheduled maintenance of IQ Solar Lighting systems
will be in 5 to 7 years!
Luminous LED initial Flux: 2,500lm
Solar LED Street Lights, Solar Light, Solar Lights, Solar
Lighting, Solar Roadway Lights, Solar LED Light, Off Grid Light,
street and area lighting, Solar Street Lights-Solar Street
Lighting
Luminous LED initial Flux: 2,500lm
(equal to 75w HPS Lamp on 25 feet {7.7 meters} height pole or
150w HPS lamp on 20 feet {6 meters} Height Pole).
IP Rating: IP65
IQ Solar Lighting systems are Engineered provide sufficient
Solar LED lighting whatever the weather conditions are, Our
Brilliant Solar Street Lights are also supplied with an
electronic controller that automatically turns the unit on and
off. The Brilliant Solar Street Lighting System has also been
designed with reliability and low maintenance in mind throughout
the life of the product.
Parking Lot Lights using solar and LED technology. Commercial
solar LED lights for security area lighting LED parking lot
lighting to save installation and running costs. Installing
solar LED lighting in a parking lot means years of
maintenance-free operation one thing less to worry about! You
can easily install one solar powered parking lot pole.
solar LED parking lot lighting you place the lights exactly
where you want them NOT cutting or trenching. Each light is
independently powered by a solar Panel mounted on the light
itself. It operates independently from all the other solar led
lights in the lot.
Parking Lot Lights, using solar power turns a necessity into a
benefit: Solar Parking lot lights are a necessity for safety
reasons. They are service lights, solar Parking lots are
unrelated to the core business, hotels and resorts solar Parking
lots, universities solar Parking lots and colleges solar Parking
lots, parking malls and corporate complex, government solar
Parking lots.
solar street lights, street lights, street lighting, traffic
lights, area lighting, Solar LED Street Lights, powerful street
and area lighting
Solar Street Lights, efficient and affordable street lighting
systems for streets parking lots, parks and area lighting. We
help you design and configure reliable solar street lights
systems
LED Solar LED Streetlight
Solar Lighting Area Lighting Green Illuminations General
Illumination Systems for Effective area lighting will maintain
nighttime safety and security, but in many cases, a reliable
source of electricity may be unavailable or too costly to access
- until now. OkSolar-powered Green general illumination systems
offer a convenient, affordable and environmentally friendly way
to add outdoor area lighting anywhere, anytime for an limitless
number of applications Solar LED Lighting for National Parks.
Illumination(E) (Height=6 m )>15 lux(Equal to HPS 33 lux)
(Height=8 m ) >9.5 lux(Equal to HPS 19 lux)
(Height=10 m )>6.5 lux(Equal to HPS 11 lux)
(Height=12 m )>5 lux(Equal to HPS 7.5 lux)
Effective Illuminated Area
20×8 m (Height=6 m )
26×10 m (Height=8 m )
Color Temperature Pure White, White White, Cool White
Color Index(CRI) Ra>78
Light Source High Power 1 Watt LED

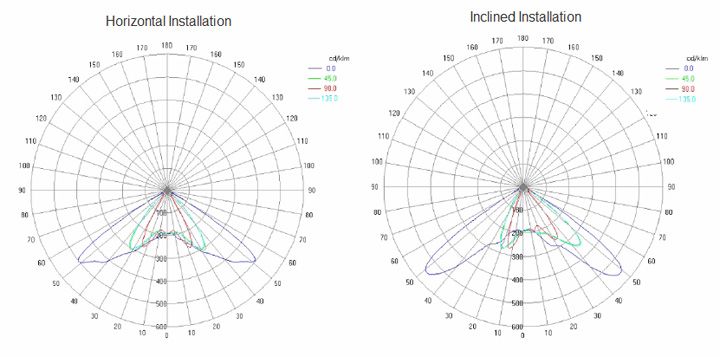

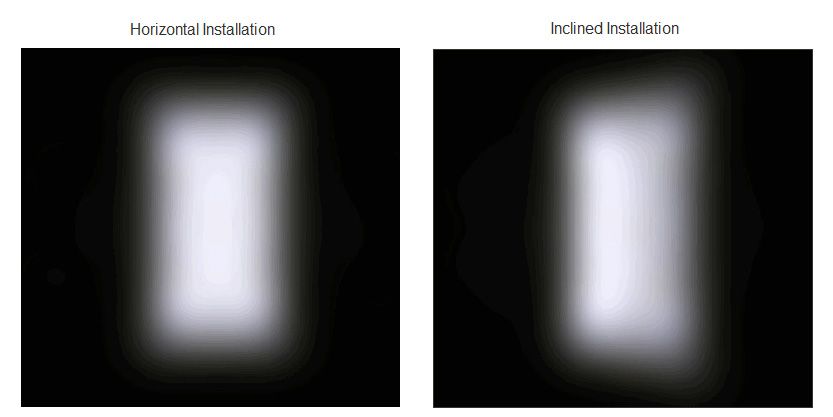

Light Distribution Curve / Beam Pattern Asymmetric (Bat Wing) /
Rectangular Beam
The Highest Light Intensity Angle 120°:The Horizontal Axis:110°,
The Vertical Axis:45°; 140°:The Horizontal Axis:130, The
Vertical Axis:45°
Beam Angle 120°:The Horizontal Axis:110°, The Vertical Axis:45°;
140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature ( Tj ) 70 ° C ± 1 0% ( Ta= 25 ° C )
System Resistance ( Rja ) 1.4 ° C / W
Working Temperature - 30 ° C ~ 40 ° C
Working Humidity 10 % ~ 90 % RH
Storage Temperature 10 ° C ~ 85 ° C
Working Life > 50,000 Hrs
