Item# 111451
|
A wind cone is used to visually indicate wind
direction at airports and heliports. Point Lighting wind cones are installed at
airports, hospitals, corporate headquarters and military bases around the world.
Recommends the PWC-8061L-1-ON-FF for heliports and as supplemental wind cones on
airports. This wind cone is inexpensive and easily serviced from a step ladder.
The PWC-8071L-1-ON-HBA provides a similar wind cone with a hinged base pole with
vibration damper.
Factory painting of the pole is standard. See specifications section for more
details.
|
|
More
information on PDF->

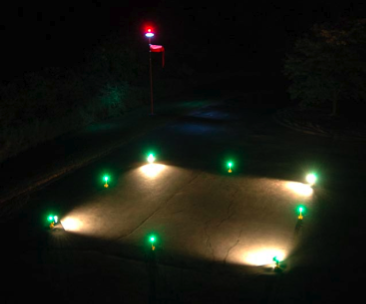

Heliport Lighting, Obstruction Lighting, Airfield
Lighting, FAA Windcone, Aviation Lights, Taxiway Lights, Perimeter Light, Wind
Cone
|
MERCURY FREE
POINT LIGHTING CORPORATION wind cones are Many wind cone manufacturers
use electrical hazardous substance and many governmental disposal of
products containing mercury. |
CERTIFIED TO COMPLY WITH EPACT
The National Energy Policy Act (EPACT) effective 31 October 1995
mandated the cessation of the manufacture of the 150-watt PAR
incandescent lamps used in the production of most wind cones. |
|
 |
PWC-8061L MOUNTING ASSEMBLY
PL10298A
SLIPFIT ADAPTER
PL10300 BREAKABLE COUPLING
PL10412 FLOOR FLANGE
8-inch outside diameter
Four (4) holes 0.56-inch dia.
6-inch diameter bolt circle
Use 0.5-inch anchor bolts
|
|
Complies with
U.S. Navy NAVAIR 51-50AAA-2
PWC-8072L-1-ON-HBA
FAA L-807 SIZE 2
FIELD PAINTING
KITS
PL10419-806 Paint Kit PWC-806
PL10419-807 Paint Kit PWC-807
Note: All L-806 & L-807 wind cones are
shipped factory painted. These kits are for
PWC-HSP units and field maintenance.
PWC SPARE PARTS
 |

 |
|
  |
Runway lights
Heliport Lighting
Obstruction Lighting
Airfield Lighting
FAA Windcone
Aviation Lights
Taxiway Lights
Perimeter Light
Wind Cone
Runway End Identifier Lights
POINT ELEVATED LIGHTS GSI-LED-861-T FAA L-861T
Tested & Certified by Detroit Testing Lab (DTL) per FAA AC 150/5345-46 ICAO
Annex 14 Compliant & Transport Canada CTP31ZE The FAA L-861T GSI-LED-861-T
medium intensity elevated edge lights mark the outlines of the
taxiways and aprons. The constant
current 6.6-amp fixture consists of a clear omni directional outer lens mounted
on a yellow powdercoat painted cast aluminum two piece lamp housing secured by a
gasket and clamp band. The head assembly mounts on a 1-inch pipe extension into
the diecast aluminum breakable coupling. The GSI-LED may be easily leveled from
the outside using stainless steel wing nuts. The light fixture includes an FAA
L-823 plug assembly for connection to an FAA isolation transformer. The light
may be mounted on an FAA stake assembly or base plate and base available
separately.
|
