The cabinet is equipped with dual AC powered air-circulating fans and is pedestal mounted as standard. Applications include wireless communications, data communications, microwave, and wireless Ethernet.

Standard Specifications:


• Outdoor, 0.125" 3003-h14 AL Enclosure Designed to
  UL50/NEMA 3R Standards
• Textured, Baked Powder-Coat Finish
• Dimensions: 44" H (incl. Pedestal) x 23.5" D x 24.25" W
• 17.5" of Adjustable Racking for 19" or 23" Equipment
• Pad-lockable Front Door
• Rear Access Panel
• Independent Door and Panel Open Alarms
• Pad Mountable on 8" High Pre-Drilled Pedestal Base; Multiple-Size Knock-outs on Sides and Bottom for Wire and Cable Access
• Plugable and Hardwired T1 Connection with 15 Joules of
  Surge Protection
• One GFCI Outlet Box with Two 15A Receptacles
• AC Line Surge Protection Rated to 6,500 Amps
• High and Low Temperature Snap Action Thermocouple Alarms
• Drilled/Tapped 10-32 CU Ground Bar with Ground Lug for End User�s Ground Connection
• DIN Rail Interface for AC, DC Connections and End User Alarms
• Dual AC Air-Circulating Fans with Three (3) Level Thermostat Control on AL Mount to DIN Rail
• One (1) RF Bulkhead Connector; Additional Knock-out Available
• Removable Lifting Lugs

Options:


• Microwave Transceivers, Other Data or Ethernet Equipment as Specified by End User AC to DC Power Options Rectifier/Battery Charger
  � ICT 12-24-5ARM Power Supply
  � SENS CM24-8-24AOA
  � Other, as Specified by End User
• Batteries
  � VRLA either Gel or AGM up to (2) 75Ah, 12V
• Optional T1 Connection
• Cable, Connectors, Grounding Kits, Jumpers, Antennas, Lightning Arrestors, Etc.
• System Integration Engineering and Open Cabinet, Front View (Rear Access Panel Removed) Outdoor Aluminum Enclosure With 19"/23" Racking For Communication Equipment Protection

Interior View Showing Proxim Lynx Radio and PECO II DC

outdoor 30� aluminum cabinets. Each was custom painted, insulated, and equipped with a 600W heater as required to house the radios and DC power supplies to protect them against the environmentally harsh and remote Northeast installation locations specified by the provider.

System Components:

• OD-30DX cabinet; painted, insulated, and including a 600W auxiliary heater
• ICT 24VDC, 5A power supply
• Proxim (Western Multiplex) model 31250 2.4GHz 1x T1 radios, other integrated infrastructure and radio materials as specified for the T1 connection.

OD-30DX Cabinet with Proxim (Western Multiplex) Model 31250 T1 Radios

37"H X 24"W X 20"D, Fan/w Thermostat, Heater, Single Gain 110 Volts Outlet, 19" Racking

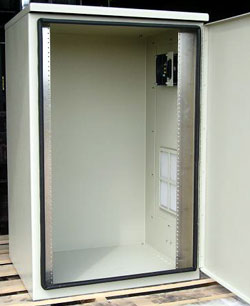

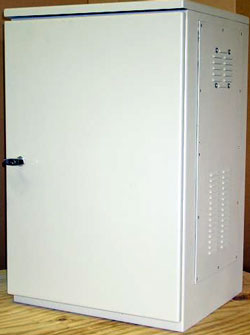

37� OUTDOOR WIRELESS ENCLOSURE

LIGHTWEIGHT ALUMINUM

35� X 22� X 18� USABLE SPACE




Physical

Exterior Dimensions 37�H x 24�W x 20�D

Interior Dimensions 35�H x 22�W x 18�D

Weight 63 Lbs



Construction

Material 0.125� Alumiflex (non-corrosive)

Powder-Coat Paint 3 step tiger drylac

Insulation �� double-sided foil back on interior

Door

Louvered 7.5 � x 10� 5 micron nylon filter

Latch - 1/4 Turn Key Lock

Gasket Alumin filled rubber



Equipment Mounting

EIA Std 19� Racking Rails 18U (31.5�) of rack space



Environmental Options

Cooling Fan (SF1) 105 cfm settable thermostat

Air Cond. (AC2) 2000 btu/hr

Heating (HT-600) 600 watt with temstat (on 45deg, off 55)



Features Standard

Electrical 4� sq gangbox (w/4 outlets)

Four RF knockouts .065� dia. (for type N RF con) on floor of unit

Four Power knockouts �� dia. on floor of unit

Ground stud on floor of unit

Warranty 10 years
