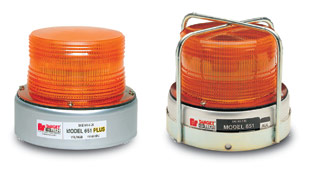

MODEL 651 SERIES

The Model 651, low-profile, strobe beacons combine high-performance power supplies, durable aluminum bases and impact-resistant, polycarbonate, domes to provide superior warning in the harshest environments.

MODEL 651 PLUS

The Model 651 Plus utilizes a replaceable, helical strobe tube and an optically superior, Fresnel, dome to maximize light output and completely fill the dome. These strobes are multi-volt (12-48VDC) and use 12-joule power supplies for brilliant warning signals. All 651 Plus DC models feature an "open-style" aluminum base with a flexible rubber mounting gasket. All models are available in Single, Double, Triple, Quad, and Quint flash versions and meet SAE J1318 Class 2 requirements. Necessary mounting hardware is included with all models.

MODEL 651 AUL

The Model 651 AUL utilizes an 11-joule, single-flash, power supply and is recognized as an Underwriters Laboratory component (UL file # AU 1995). All 651 AUL models feature a wire dome guard and an enclosed metal base. The Model 651 AUL is designed to meet all type E and EE industrial lift truck requirements. All 651 AUL models meet SAE J1318 requirements for Class 2. Necessary mounting hardware is included with all models

EFFECTIVE

High-performance power supplies produce attention-getting signals
Optically superior, Fresnel, dome maximizes light output
High-intensity, replaceable, helical strobe tube
Multi-volt from 12-48VDC, 72VDC and 115VAC
Meets SAE J1318 Class 2

RELIABLE

Proven components and technology
Model 651 AUL is a UL-listed component
Protected against moisture and contaminants
Protected against voltage spikes and reverse polarity
RFI suppression

DURABLE

Impact-resistant polycarbonate dome
Corrosion-resistant anodized aluminum base
Model 651 AUL includes wire branch guard

APPLICATIONS

Utility vehicles
Industrial trucks
Construction vehicles

Part Number	Description
Model 651 AUL
	412010-XX	MODEL 651AUL,STRB,12V	$168.75
	412013-XX	MODEL 651AUL,STRB,24V	$168.75
	412014-XX	MODEL 651AUL,STRB,36V	$168.75
	412015-XX	MODEL 651AUL,STRB,48V	$168.75
Model 651 AUL Replacement Parts
	211090-95	PWR SPLY,12V,1F,651AUL	$138.50
	211093-95	PWR SPLY,24V,1F,651AUL	$138.50
	211094-95	PWR SPLY,36V,1F,651AUL	$138.50
	211095-95	PWR SPLY,48V,1F,651AUL	$138.50
Model 651 Plus
	211944-XX	MODEL 651,STRB,4F	$192.75
	211945-XX	MODEL 651,STRB,5F	$192.75
	412026-XX	MODEL 651,STRB,72V	$147.00
	412027-XX	MODEL 651,STRB,115V,AC	$152.00
	412028-XX	MODEL651,STRB,115V,PIPE	$155.25
	420200-XX	MODEL 651,STRB,2F	$138.50
	420204-XX	MODEL 651,STRB W/CL,2F	$161.50
	420205-XX	MODEL 651,W/TOP,2F	$148.00
	420208-02	MDL651,PLY,LENS/DISK,2F-A	$182.25
	420210-XX	MODEL 651,W/TOP&CL,2F	$163.50
	420212-XX	MDL651,2F,PERM/PIPE	$154.25
	420214-XX	MDL651,2F,MAG MNT	$181.75
Model 651 Plus Options
	210830	POLY 1"PIPE/FLUSH BOTTOM	$12.50
	210831	POLY FLUSH MAG MNT KIT	$33.50
	210837	1"-1/2"PIPE ADAPT,	$7.50
	210838	1"-3/4"PIPE ADAPT,	$7.50
	210846	ENCLOSED BOTTOM,FLUSH	$18.00
	210877	DUST COVER W/BLK TOP,651	$10.50
	210923	BOTTOM,ENCLOSED,1"	$18.00
	210928	MAGNETIC MOUNT KIT	$24.00
	210939	L MTG BRKT,651/851,YELLOW	$20.00
	210982	ALUM 1" PIPE/FLUSH BOTTOM	$32.50
Replacement Parts
	200030-95	REPL BULB,12V	$5.50
	200765-95	REPL DUST COVER,651/901	$8.50
	200766-95	REPL DOME,651/901-B	$22.00
	200767-95	REPL DOME,651/901-A	$22.00
	200768-95	REPL DOME,651/901-C	$22.00
	200769-95	REPL DOME,651/901-R	$22.00
	200770-95	REPL DOME,651/901-G	$22.00
	205003-95	REPL BASE GASKET	$8.50
	205004-95	REPL DOME GASKET	$8.50
	208551-95	BASE,602/651/851/901/951	$21.00
	211007-95	REPL PWR SUPPLY,115V,1F	$115.75
	211024-95	REPL PWR SUPPLY,72V,1F	$138.50
	211052-95	REPL PWR SUPPLY,12-48V,2F	$100.00
	211200-95	REPL FLASH TUBE,651/901	$32.50
	430344-95	PWRSPLY,12-48V,4F,651/851	$133.50
	430345-95	PWRSPLY,12-48V,5F,651/851	$133.50
	438694-95	MOUNT KIT,651/851/901/951	$5.50
