Traffic > DOT Accessories
 |
|
item# 01503
120VAC - 168 LED Bulb Array, 168 LEDs in a retrofit kit. With Crown
and Skirt
The operating temperatures are -40�C to +74�C.
The retrofit kit includes the circuit board with LED matrix and
electronic circuitry, and a medium base screw-base adapter. The module
operates at 6 watts at 120 VAC.
Height 3.75" Diameter 2.375"
White: uses LEDs that shall be rated at 2� 1/2 30� to be 5800 mcd
typical at 20ma.
|
|
 |
Poles and Aluminum Bases: We offer several styles of pedestal bases to choose
from, all which fit with our pedestal poles. The square base is available
in aluminum or iron. It can be threaded or used as a slip fit.
Options include steel or plastic door, both which can have your custom
logo cast into it. This base can also be heat treated.
|
|
|
SIGNAL MOUNTING SYSTEMS
Side of Pole Bracket POLYCARBONATE
Ever wonder, when looking at Signal Framework, how do I put this
together? Component Products Polycarbonate Mounting System can help you
eliminate these concerns.
PRODUCT FEATURES
- Side of Pole Mounting One piece design, fits all signal heads,
hollow construction to allow wire routing
- Post Top Mounting One piece design, eliminates drilling holes in
poles, safety in knockdown, ease of mounting, allows offset on
signals
- Mast Arm Pole Mounting One piece design, fits all signal heads,
hollow construction to allow wire routing
Specifications: 30% Glass Impregnated Polycarbonate on Brackets
40% Glass Impregnated Polycarbonate on Post Top Mount
Colors: Black,Yellow, Bronze or Green
|
|
|
One-Piece Polycarbonate Traffic Signal Bracket
Item# 170872,
The Side of Pole Bracket (SOPB) is a one-piece,
molded polycarbonate bracket
that is designed for side-of-pole mounting.
Raised serrations on one side will accommodate all signal heads without
use of additional fittings.
Mounting can be accomplished by either banding or lag scre ws.
Hollow construction allows wire routing.
FEATURES:
Design:
Exclusive
one-piece construction fits all signal heads.
Standard 72-teeth serrations on both sides.
Dimensions:
5-3/4" h x 2-7/8" w x 11 7/8" d
Serrations:
Raised 5/16" on one side
Flush on other sides
Weight:
1.25 lbs.
Material:
Glass Impregnated Polycarbonate
Colors:
Yellow, Black, Bronze & Green
Additional:
Chase Nipple, Lock Nut and Closure Caps Available on Request
|
|
|
PEDESTRIAN PUSH BUTTONS & SIGNS
Rectangular, Round, ADA, Led Push Buttons, Stations, Isolator/Led Latch
Assy's, Switches, Pedestrian Signs
|
|
|
 Cabinets
and Locks
Our flasher cabinets have weather resistant door seals and are
available for top and bottom or rear mounting.
Cabinets can be fully wired with time clock, NEMA or 5-pin strip, circuit
breaker and on-off toggle switch. They are supplied with either standard
Type II or Police style locks and keys. |
| |
Back Plates
Our vacuum formed back plates are designed to fit all popular
manufacturer�s signal heads. They are formed with a 90 degree, 5/8� flange
on all sides for rigidity and structural integrity.
They come complete with stainless steel mounting hardware. Most styles are
in stock for immediate shipment. Also available are louvered vacuum formed
and flat back style.
Specifications
Material: ABS plastic meeting the
UL 94 Test H.B.
Contain ultra violet inhibitors
and stabilizers
Compounded for cold
weather application
Hair cell finish on front side
Tensile stress at yield of
5300 PSI at 73 degree F
Types: Vacuum Standard, Vacuum
Louvered and Flat back
|
| |
Post Tops
Post top mountings are available in aluminum, iron and bronze. Standard
assemblies come with 1 �� NPS fittings. Optional fittings are tri-stud,
tri-bolt and NPT.
Also available are horizontal and vertical post top terminal compartments.
Specifications
Material: Aluminum Ingot Alloy 319
Opening: 4 �� and minimum 3 �� depth
1 �� - 11 �� NPS threaded boss extending �� above center top
|
| |
Camera Mounting
Our brackets rise to the occasion to fill the mounting needs for
cameras, sensors and antennas. These camera mount brackets are adjustable
and will fit any size, shape or surface.
Special features allow for concealed wiring, optimal 360 degree
positioning and 6� elevated mounting height above mast arms or poles. |
| |
Item# 880700
The
IQInvision IQEye3
is an intelligent network camera with leading edge performance and a 1.3
Megapixel color imager. Capable of over 1.8 Mpixels/second JPEG
performance the IQeye3 is a perfect solution for a wide array of
applications.
Very low
power requirements and flexible network connectivity make the IQeye3 perfect
for deployment in a wide variety of environments. The optional IQpoet (Power
over Ethernet) make the IQeye3 easy to install and maintain.
The
IQeye3 platform contains a fully functional network computer that makes it
possible to watch live images using a web browser, configure the camera to
email and/or FTP images based on triggers or time lapse settings, or embed
custom web pages. Uncompressed images are available over the network for the
programmer, but be prepared with a dedicated 100 Mbps network, because the
IQeye3 produces an uncompressed stream that will flood a shared Fast
Ethernet network. In contrast, when providing compressed streaming JPEGs an
IQeye3 typically uses only 1 to 2 Mbps of a shared network.
Digital Pan Tilt Zoom is standard on the IQeye3, allowing simultaneously
multiple users to view different parts of the total image. Each connected
user can pan and tilt within the image, and can zoom in on interesting
details.
The
IQeye3 works great with standard industrial mountings and enclosures as well
as CS-mount and C-mount lenses. The standard camera is ready for your 1/2"
CS-mount lens.
|
| |
|
ADoAT4
Annual Event Timer
Overview
Model
ADoAT4
is an extremely versatile 24 Hour 365 Day Event Timer designed to support
a wide range of applications. Such applications include: Home and Building
Automation, Security, Access Control, Lighting Control, Etc.
ADoAT4 is equipped with four independently controlled form �C� relay c ontacts
that provide many latching and/or momentary operations during a program
schedule of your choice. The EE prom memory allows for programming of unit
prior to/or during field installation. Events may be set for single or
multiple operations on a daily and/or weekly schedule. The block
programming feature enables repeating an event on any combination of
consecutive days. ADoAT4 will
compensate
for daylight savings time if desired. It automatically adjusts for leap
year and is Y2K compatible. Individually selected holiday exceptions can
be programmed to over-ride regularly scheduled events.
Specifications:
- 12 to 24
volts AC or DC operation
- Standby current: 20mA with relays off combined with 40mA for each relay
on.
- Four (4) Form �C� relay contacts are rated 10amp @120VAC/28VDC.
- EE Prom memory protects against loss of programming due to power
failure.
- Clock synchronization 60Hz (AC operation).
- Accurate crystal controlled clock (DC operation).
- Momentary and/or Latching Events.
- 254 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 1778 events per
week.
- 254 programmable Holiday events.
- �First man in� option.
- Alphanumeric LCD display simplifies programming.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
- Each relay operates independently.
- Built-in charger for 12VDC sealed lead acid or gel type batteries
(Max charge current 300mA).
- Lithium battery backup maintains clock.
- User friendly keyboard programming.
- Unit is Y2K compatible.
|
|
|
Confirmation Light
When you need a sure way to confirm a traffic signal is red when a car
enters the intersection then the confirmation light is the way to go.
Connect it to the signal indication and you have the perfect system for
law enforcement to confirm red signal violations. It can also be used as
an on-ramp meter confirmation light or as a scale positioning system.
Specifications
Material: lense - UV stabilized impact resistant polycarbonate
Lense Colors: clear or blue
Watts: 67 or 69 watt 8000 hour
traffic signal lamp (not
to exceed 75 watts)
|
|
|
|
Traffic Signals and Lane Controls for Industrial Applications NEW:
Our Portable Remote Controlled
Signals have telescoping heads � they are lightweight, weatherproof,
rechargeable, and controlled with a remote keychain!
|
|
|
Optional:
- Remote Control: Wireless
300 to 20Miles control
-
Paging System
Two-way paging available for programming and troubleshooting
school zone time clocks (AC or Solar Powered). A two-way paging
system will allow you to program times for the new school year,
special events, and even turn flashers in the system on during
emergencies - all from your office. Two-way paging provides
acknowledgement that the flasher received the message and
provides diagnostic messages to let you know if the flasher is
functional.
- Bullet Proof Panel
(This option adds 3 layer bullet proofing protection to the unit
window. It is the non-shatter configuration and includes
mounting brackets for field replacement.)
-
Real time control
- Computer programmable
|
|
|
GPL
The GPL (Geometrically Programmed Louver) is a precisely aimed traffic
signal louvering system. It can easily predetermine a field of vision with
pinpoint accuracy.
It is designed for fast, easy installation and economic durability. It can
retrofit into existing signals or be installed as a compete visor
assembly. Fits any standard 12� signal head.
Specifications
Material: Housing - Black UV inhibited
ABS plastic
Baffles - Flat Back 0% glass
filled UV inhibited
polycarbonate
View Angles: 7 degrees to 42 degrees
Options: Installation kit
|
|
|
|
Polycarbonate Signals Specs Click on picture
  |
|
|
|
-
traffic light controller cabinets
-
electronics controls enclosures
-
distribution rack systems scada
-
SCADA
-
utilities and traffic light controls
-
traffic light control controller cabinet
-
cabinets equipment devices utilities
-
oem manufacturer
-
nema metal electrical enclosures
-
Rack systems for SCADA (Supervisory Control & Data Acquisition) applications
|
Picture |
Description |
Prices go to Order Online > Components >
Enclosures
Click on Picture for more information |
More info
 |
Item# 777000

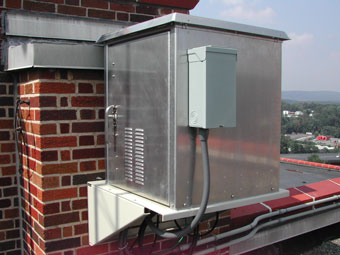

OK Premium Enclosures
Hinged Cover Battery Enclosures
premium series hinged cover enclosures are engineered
specifically for the OEM industry allowing the installer to add
controllers and other electrical and electronics components.
Additional back, side and door panels are available. Designed
for outdoor use, NEMA type 3R/12 construction, enclosures have
bottom-to-top rain and dust proof vent design. A removable front
opening door is lined with a sealing gasket and includes a
special keyed cam-lock and dust cover. These enclosures are
white powder coated aluminum for ultimate protection in severe
climates.
For applications in extreme hot or cold conditions, space is
available for additional 1� foam insulation around the battery.
Features:
-
3 models for either 1, 2 or 4 batteries (125 Ah)
-
Vertical design on 4 battery enclosure (2 + 2) with removable
interior shelf
-
Passive venting with dust filtration pads
-
1/4 turn cam-locking door latches with special key and dust
cover
-
Electrical knockouts and ground lug hole on rear
-
Rear-top of enclosure �hanger� built in for easy
-
installation onto mounting brackets
-
Vandal resistant mounting brackets and U-bolt sets are sold
separately
|
 |
Click on Picture
for more information
Item# 777020 - 777021 |
 |
Click on Picture for more information
Item# 777025 - 026-027-028 |
 |
[000/include-fix.htm] The enclosures are normally used to house electrical
controls, terminals and instrumentation. Typical industrial
applications include traffic control, electronics and
telecommunication. The cabinets are available in many sizes and
configurations, including double door and four door versions
|
 |
Item# 372427
Outdoor Cabinets
for T1 Microwave Application in Northeast U.S. |
 |
Item# 37429
Outdoor Cabinets
for T1 Microwave |
 |
|
 |
777145 Weatherproof
Aluminum Cabinet Enclosures |
 |
Rectifier Enclosures with 19" rack mounts.
More Information |
 |
Chest-style Battery Enclosures for maximum security and
protection.
More Information |
|
|
|
 |
|
|
Heavy-duty Battery Racks for service, storage, and
transport.
More Information |
|
|
|
 Note:
To view the above PDF documents, you will need the
free Adobe Acrobat Reader
Batteries Enclosures for commercial, industrial, military
applications, battery enclosures, battery cabinets, cabinets, battery cabinets,
batteries enclosures, batteries cabinets, enclosures, trafic control enclosures,
traffic control cabinets, traffic light controller cabinets,
electronics controls enclosures, distribution rack systems scada,
SCADA, traffic light control controller cabinet, cabinets
equipment devices utilities, oem manufacturer, nema metal
electrical enclosures, Rack systems for SCADA (Supervisory
Control & Data Acquisition) applications!
|
